Product Type Features:
Receptacle Style = Straight
Insertion Force = Normal
Finish = Tin
Dimple Type = Dimple with wire stop
Insulation Support = Insulation Support
Color = Blue
Electrical Characteristics:
Voltage (VAC) = 300
Dimensions:

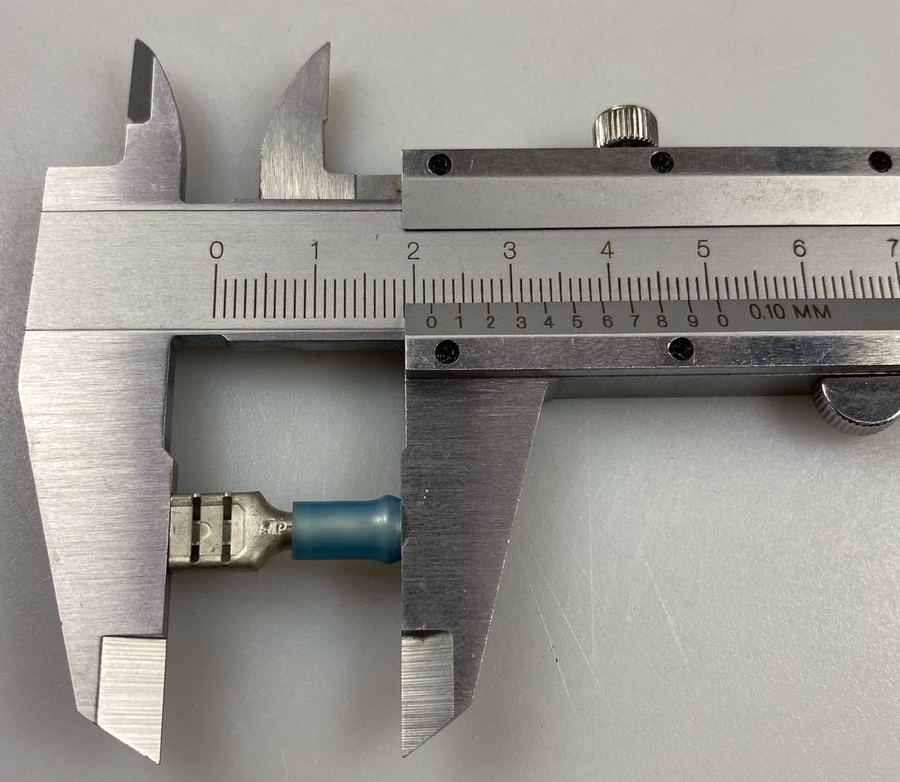

Mating Area Interface Dimensions (mm [in]) = 6.35 x 0.81 [.250 x .032]
Insulation Diameter (mm [in]) = 4.32 [.170] Max.
Body Features:
Fully Insulated = No
Wire Range (mm [AWG]) = 1.00-2.50² [17-13]
Material = Phosphor Bronze
Insulation Sleeve Material = Nylon
Industry Standards:
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Not relevant for lead free process
RoHS/ELV Compliance History = Always was RoHS compliant
Packaging Features:
Packaging Method = Loose Piece
Packaging Quantity = 500
Other:
Proprietary Name = PIDG FASTON
Brand = AMP

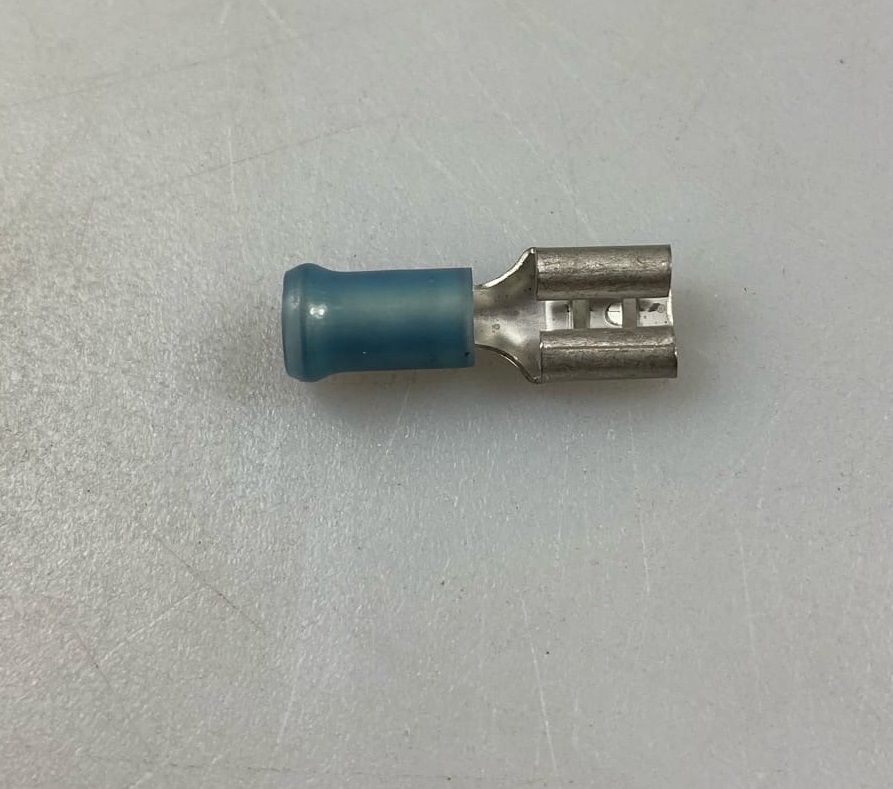

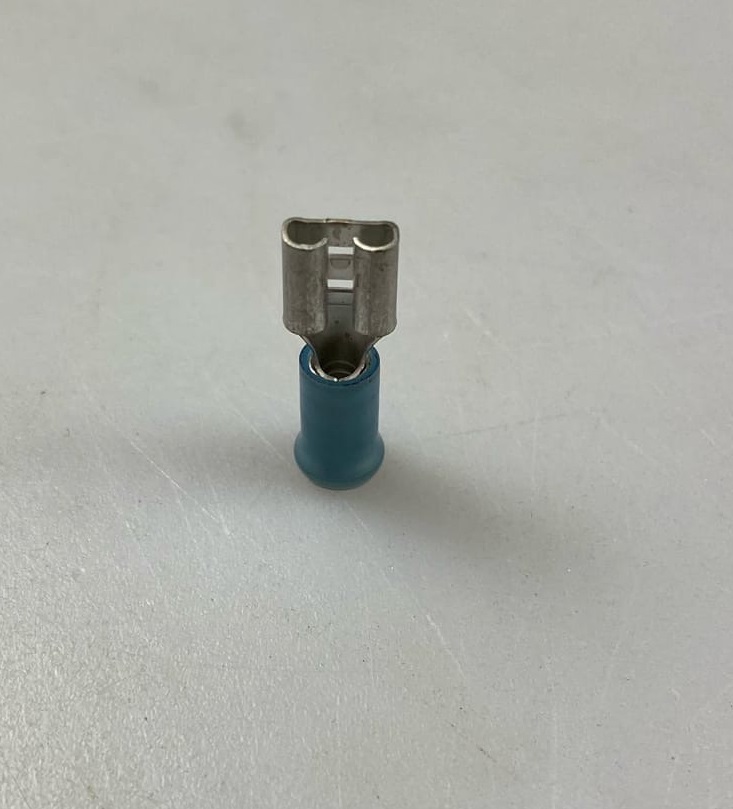

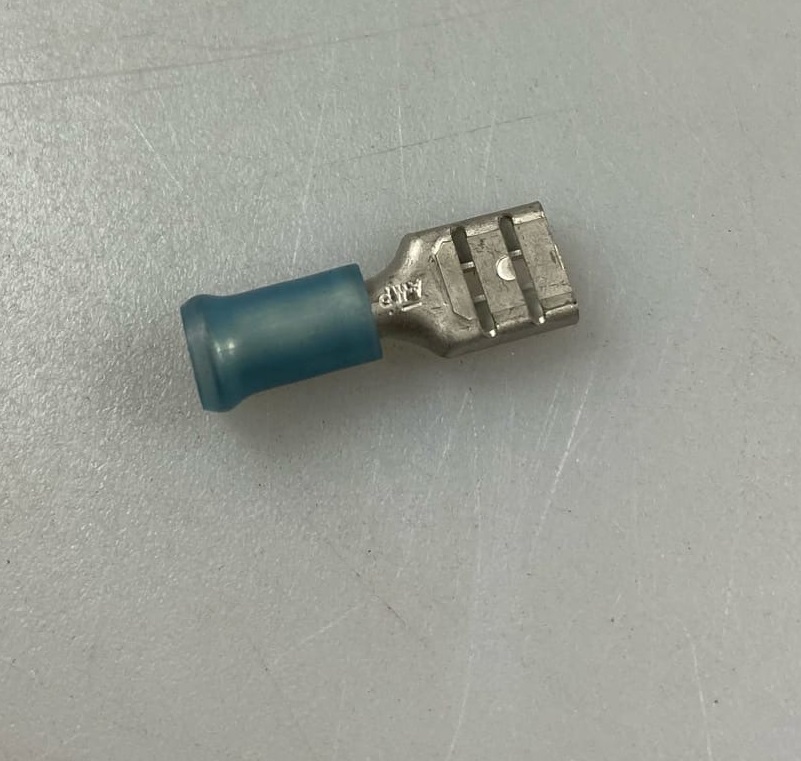

Контакт 9-160313-2 АМР (гнездо 6,3)
Цена по запросу
Наличие: 290 шт
Подробнее
Описание
Характеристики
| Масса, кг | 0 |
| Дата первого заказа | 2014-05-17 |
| Производитель |
